Uniquely engineered for shallow or narrow sign cabinets, G2G's SiDe optic lenses optimize light from the edge to the center, delivering bright and even illumination in a revolutionary way. For application of both single and double-sided cabinets. Installation options include 3M VHB double-sided tape and mechanical mounting.

LED MODULE FEATURES

  • LEDs

    • Life time up to 50,000 hours

  • System

    • Constant current technology

    IP67 wet-location

    UL and cUL recognized

  • Packaging

    • 20 modules per bag, 10 bags per box

  • Warranty

    • 5 years

  • Power Supply

    • Input voltage: 12 VDC

  • Mechanical Structure

    • 3M VHB double face tape and mechanical mounting options

  • Optical Structure

    • Designed for maximum brightness output UV or IR protected

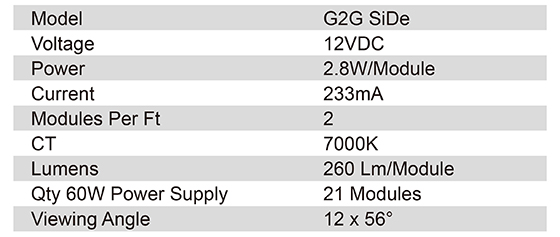

LED MODULE SPECIFICATIONS

Catalog
Installation Guide

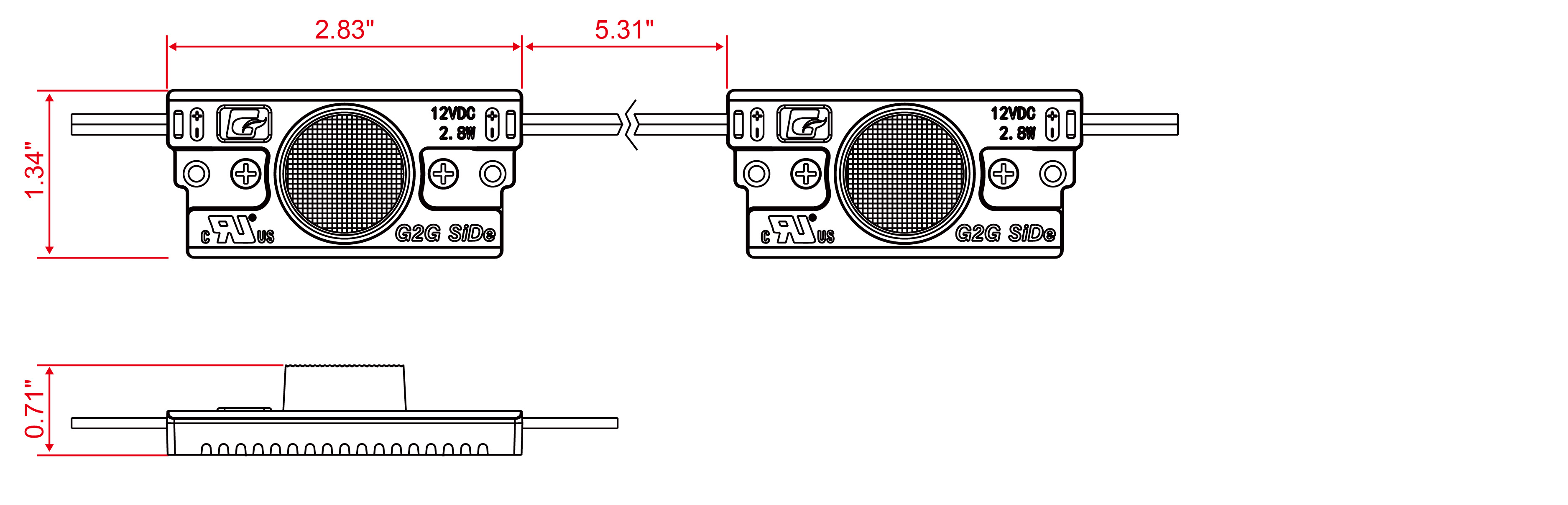

LED MODULE DIMENSIONS
