G2G's new generation Aurora R LED modules are innovatively designed as an optimal solution for outdoor and indoor lighting. Ideal for channel letters, illuminated light boxes, and decorative architectural lighting.

LED MODULE FEATURES

  • LEDs
  • Life time up to 100,000 hours

  • System
  • Constant voltage technology

    IP68 wet-location

    cUL recognized

  • Packaging
  • 100 modules per tray, 5 trays per box

  • Warranty
  • 5 years

  • Power Supply
  • Input voltage: 12 VDC

  • Mechanical Structure
  • Epoxy filled for wet-location applications

    3M VHB double face tape and mechanical mounting options

  • Optical Structure
  • Designed for maximum brightness output UV or IR protected

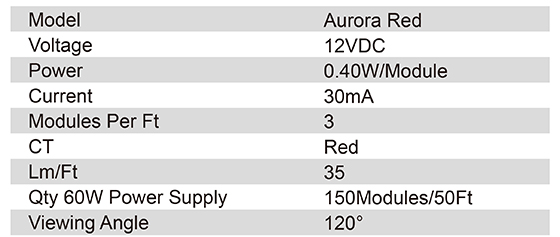

LED MODULE SPECIFICATIONS

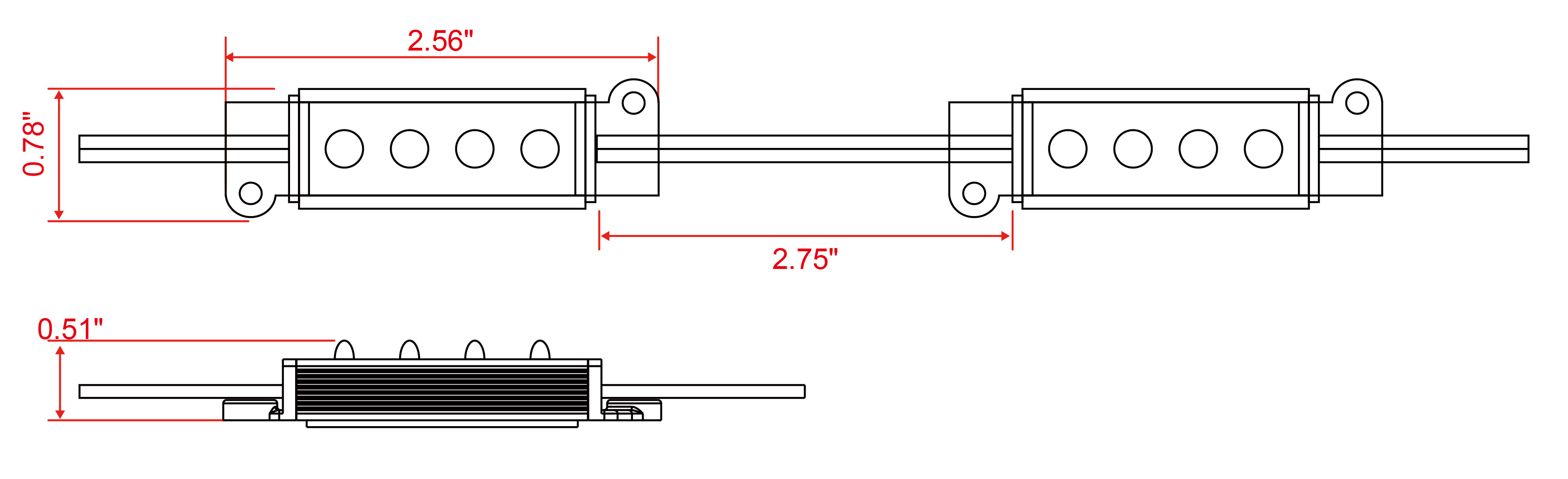

LED MODULE DIMENSIONS
